WPS SeriesIP54 Inverter

A true IP54-oriented off-grid platform with a semi-potted control board and a four-layer air-path protection system for dusty, humid and demanding indoor installations.

Download catalogue ↓

3.6–12 kWRated output range · IP54 Ingress protection

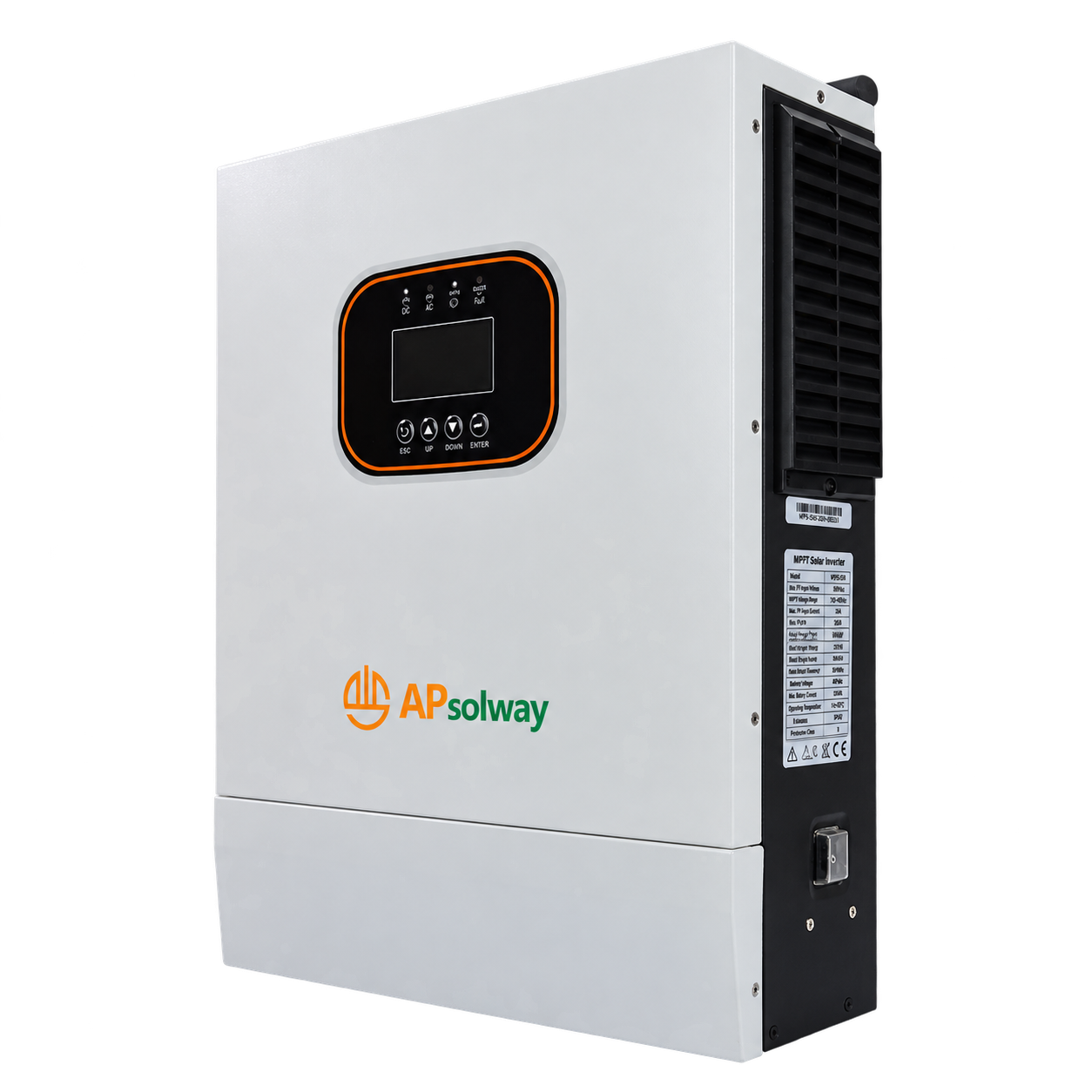

APSolway WPS Series IP54 off-grid inverter

3.6–12 kWRated output range

IP54Ingress protection

24 / 48 VBattery platforms

4 layersAir-path protection

MODEL SELECTOR

Choose a model.

01WPS3600-243.6 / 5 kW · 24 V 02WPS5000-243.6 / 5 kW · 24 V 03WPS6500-486.5 kW · 48 V 04WPS6500 Pro-486.5 kW · 48 V 05WPS12000-4812 kW · 48 V 06WPS12000 Pro-4812 kW · 48 V

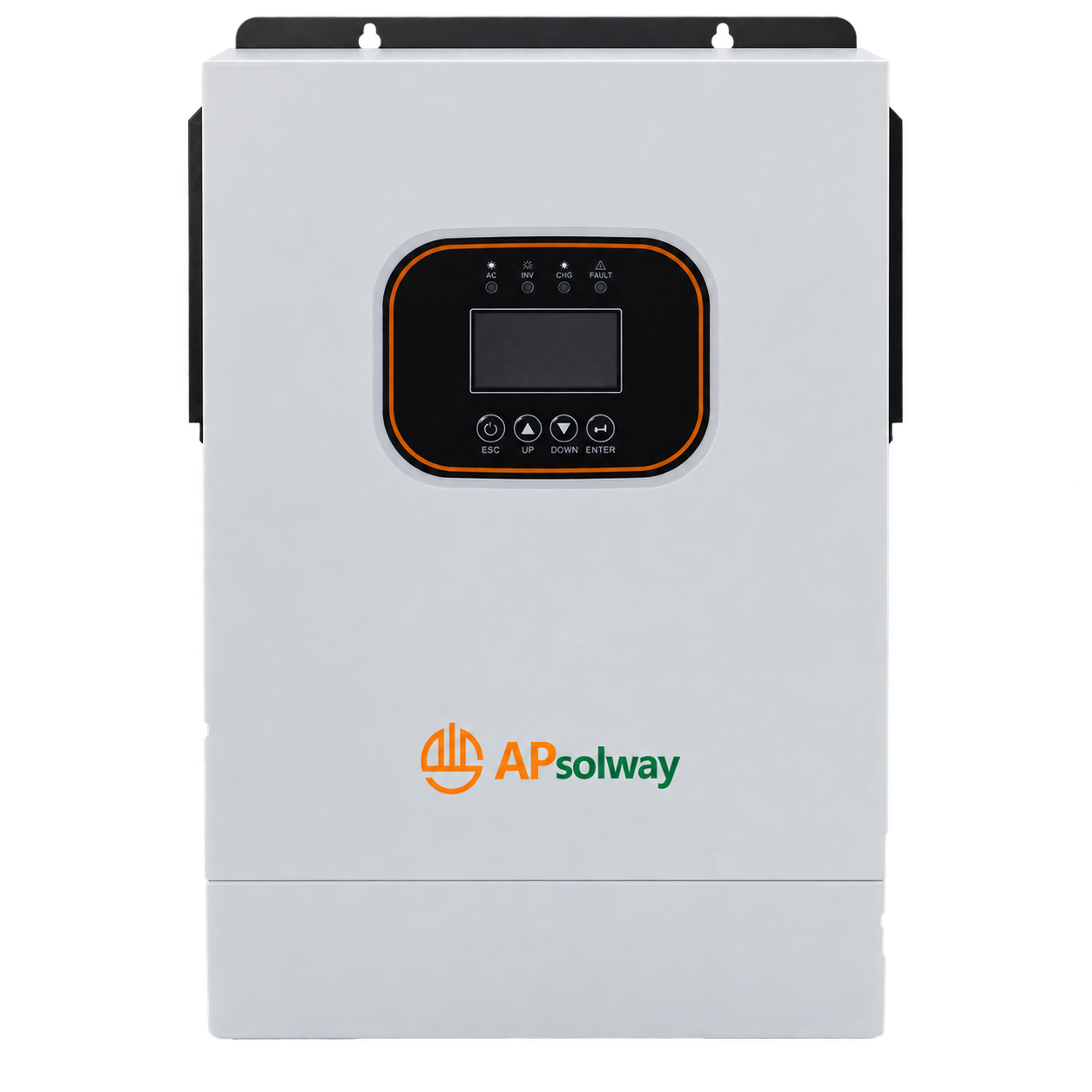

MODEL PREVIEWWPS3600-24

3.6 / 5 kW · 24 V

WPS3600-24

Hover to preview · Click to open model details

Rated output: 3.6 / 5.0 kW
AC voltage: 208 / 220 / 230 / 240 VAC
Maximum PV: 5,000 / 9,000 W
Battery platform: 24 V
Phase system: Single phase
MPPT window: 40–450 / 60–450 VDC

PRODUCT DOCUMENTATION

Take the full specification with you.

PDFDownload WPS catalogue↓
