SELECTED MODEL
EZ1-H
Original catalogue artwork · values and system layout are preserved.
MICRO SERIES · EZ1 Series
EZ1-H
- Rated output
- 600 / 799 / 960 VA classes
- AC voltage
- 230 VAC
- Maximum PV
- 300–760 Wp+ modules
- Battery
- Not required
- Phase
- Single phase
- MPPT window
- Independent MPPT

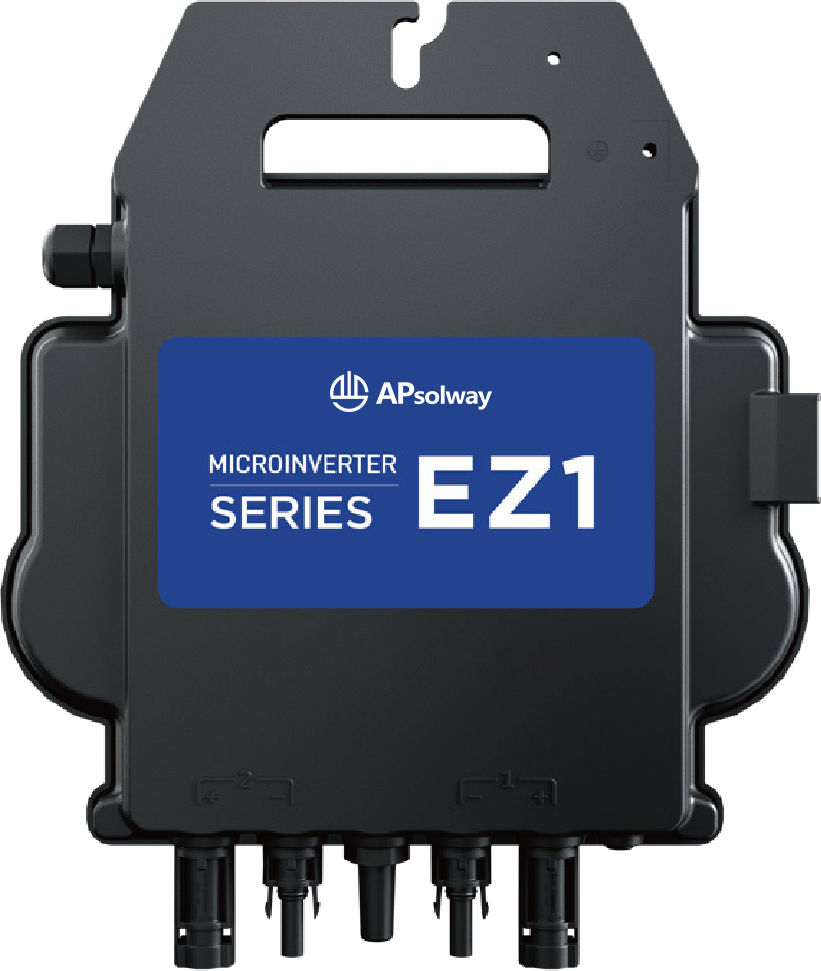

PRODUCT VIEW GALLERY
See every angle.
1 detailed views of the EZ1-H enclosure, connections and profile.
MODEL-SPECIFIC TECHNICAL DATA
EZ1-H specifications.
Extracted from the official product catalogue for this model only.
| Parameter | EZ1-H |
|---|---|
| DC Input | |
| Recommended module power | 300–730 Wp+ |
| Peak tracking voltage | 28–45 VDC |
| Operating voltage range | 26–60 VDC |
| Maximum input voltage | 60 VDC |
| Maximum input current | 20 A × 2 |
| Maximum short-circuit current | 25 A × 2 |
| AC Output | |
| Maximum continuous output power | 600 / 799 VA class |
| Nominal output voltage | 230 VAC |
| Nominal frequency | 50 / 60 Hz |
| Mechanical & Features | |
| Protection grade | IP67 |
| Dimensions (W × H × D) | 263 × 218 × 36.5 mm |
| Weight | 2.8 kg |
| Communication | Built-in Wi‑Fi + Bluetooth |
| Warranty | 12 years standard |
